3/4 inch Plastic Agricultural Drip Irrigation Water Treatment Screen Disc Filter

Description:

The mesh filter is a kind of filter that directly intercepts impurities in the water, removes suspended solids and particulate matter in the water, reduces turbidity, purifies water quality, reduces system dirt, bacteria and algae, etc., to purify water quality and protect the normal operation of other equipment in the system.

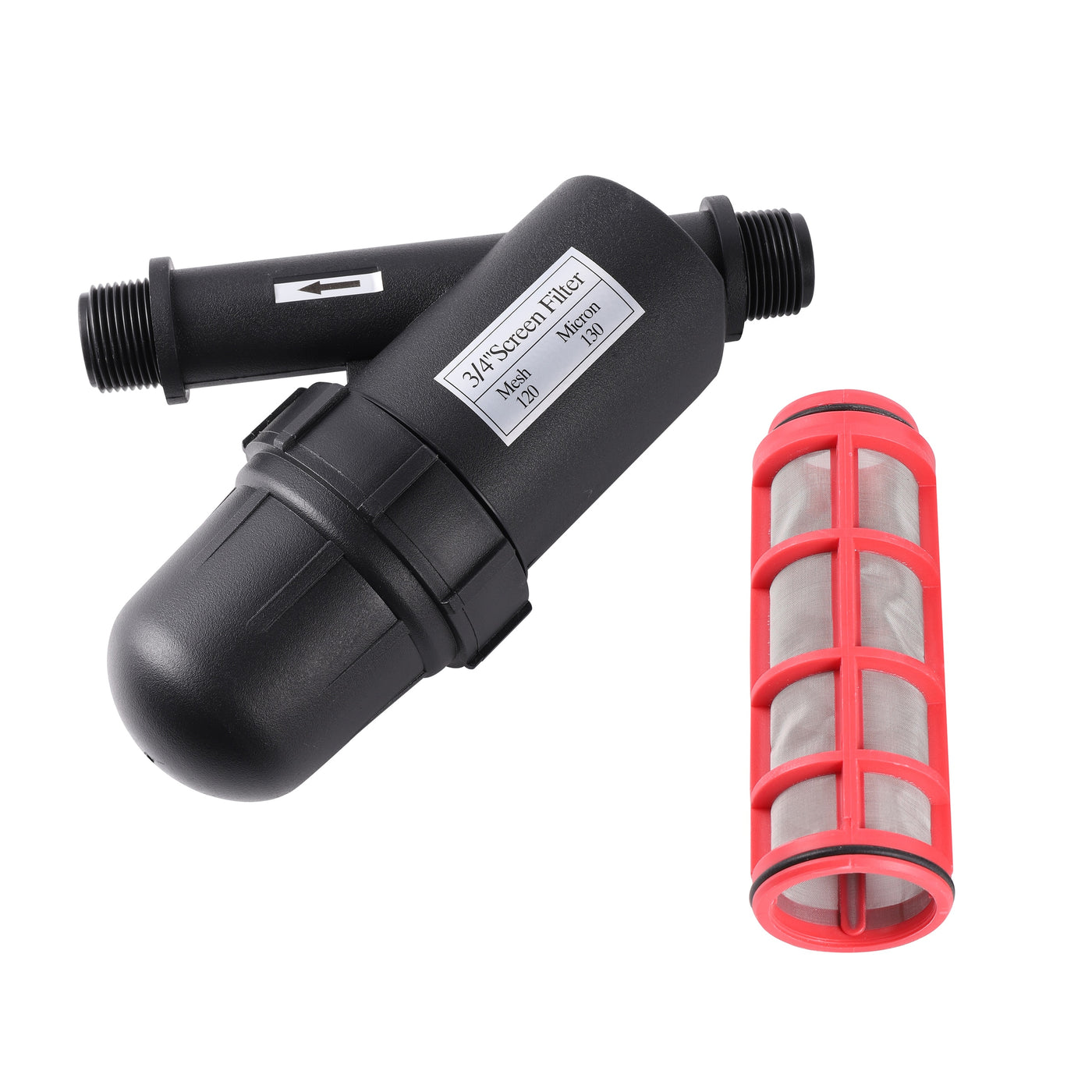

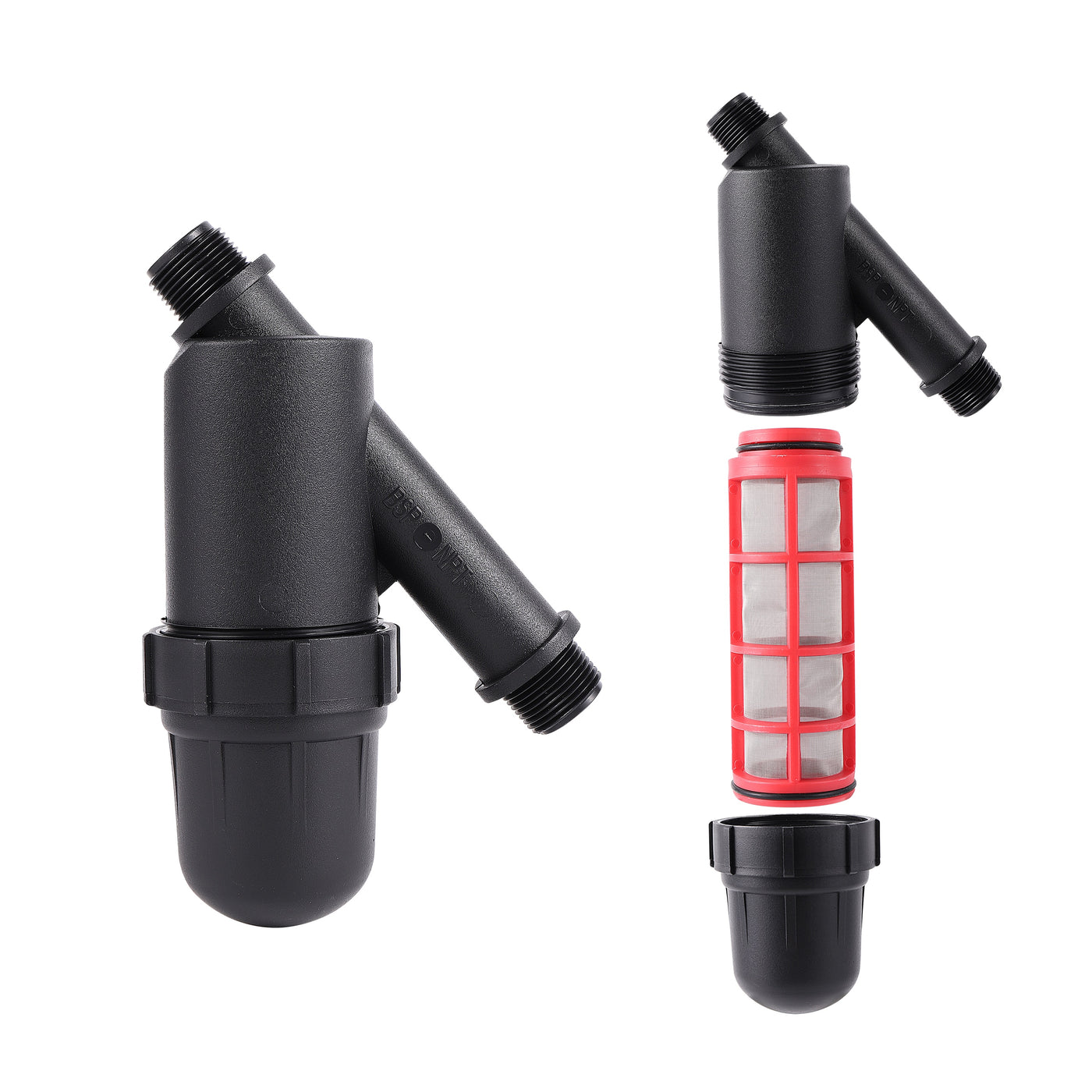

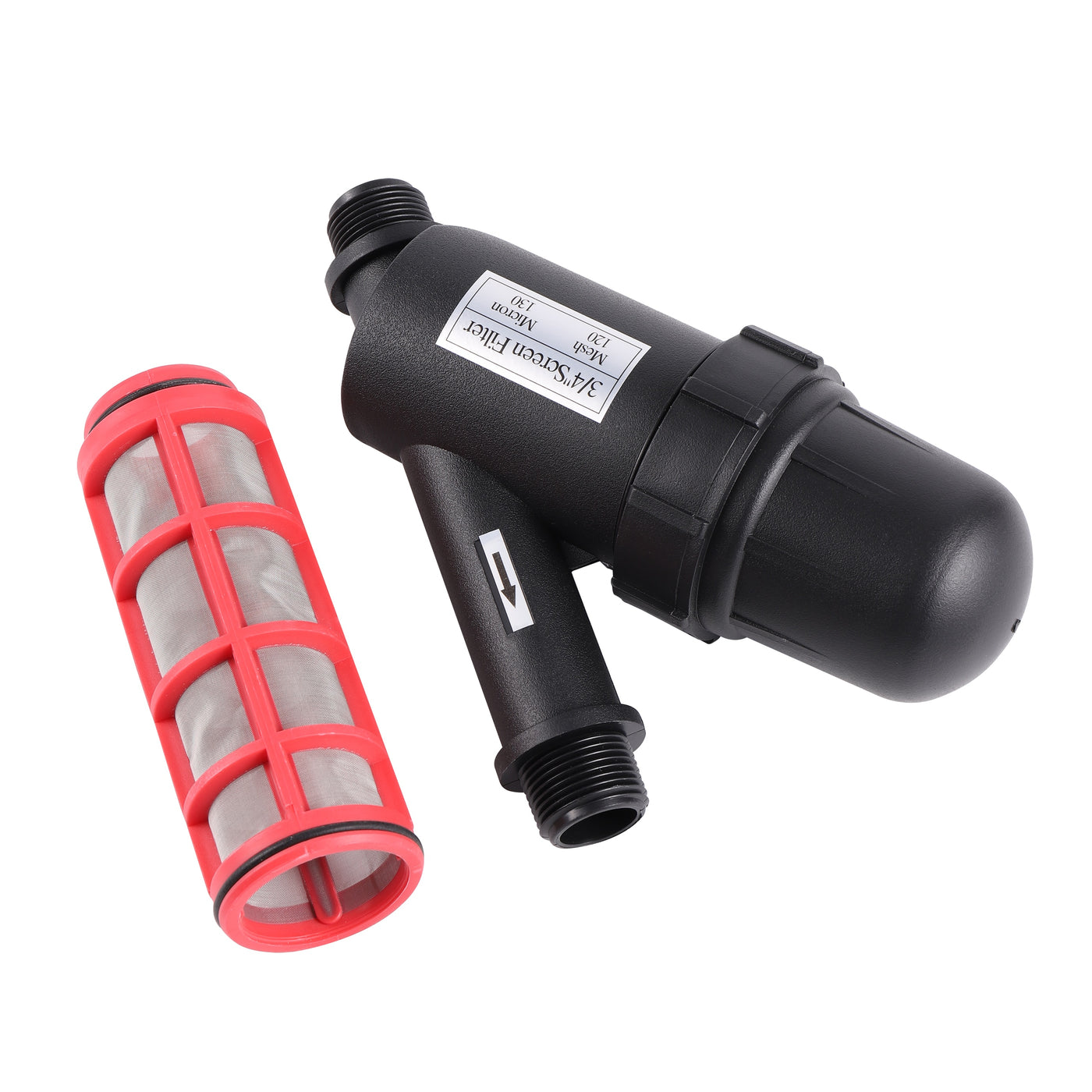

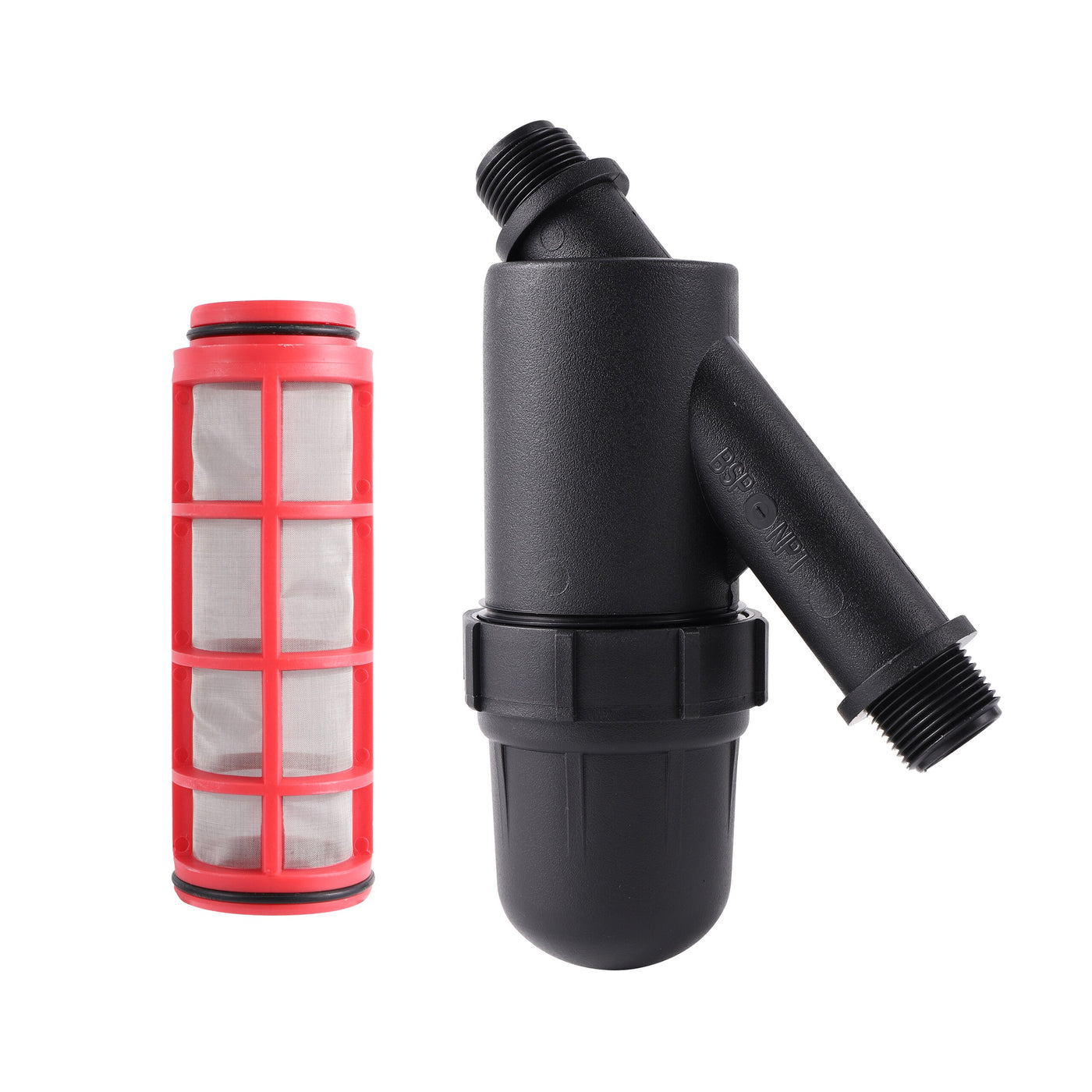

The mesh filter is mainly composed of a plastic body and a screen filter . Water flows into the filter from the water inlet and flows to the water outlet through the filter screen. The impurities larger than the pore size of the filter screen are trapped on the outer surface of the filter screen, so as to achieve the purpose of purifying the water quality.

Usage: Used for filtration in the first system of greenhouse irrigation, agricultural irrigation, and garden irrigation.

Direct filtration: Water sources with better water quality and less impurities (agriculture, garden, golf can be used, drip irrigation and sprinkler irrigation)

Product details:

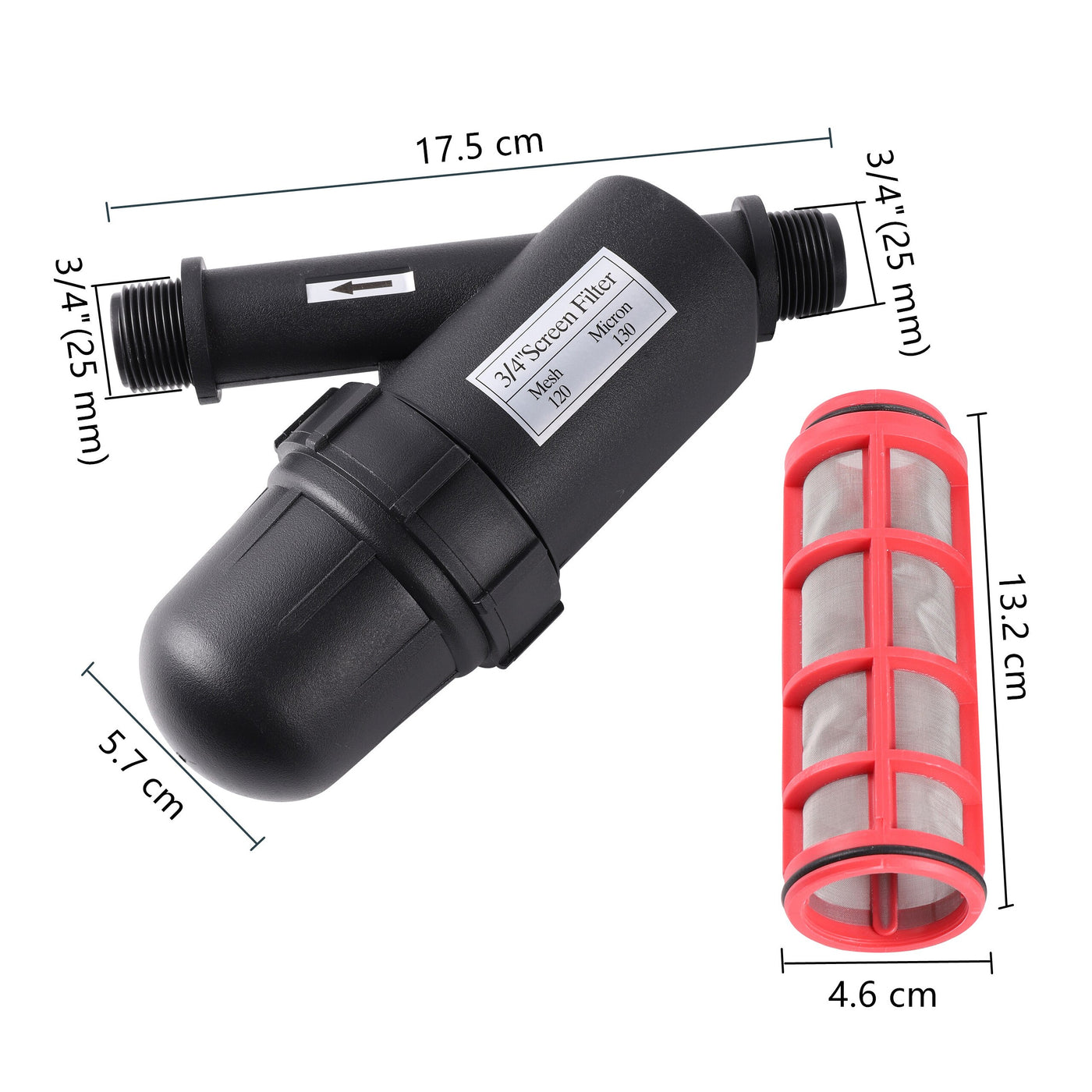

Product name: 3/4" Male thread water filter

Connection size: 3/4" Male thread

Filtration accuracy: 120 mesh (130 microns)

Filter material: Plastic body ,stainless steel filter

Maximum flow rate : 5 m³/ H

Maximum working pressure: 8 kg
